Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity

Name: Electronic Plastic Testing Machines Plastic Testing Instruments 300KN Capacity
Brand: Infinity Machine
Price: 1 USD

Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity Manufactures

Brand Name : Infinity Machine

Model Number : RS-8000A

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Capacity : 100KN, 200KN, 300KN

Stroke : 650mm, 800mm (optional)

Effective width : 400mm , 600mm (optional)

Software : Closed-loop control software

Motor : AC servo Motor

Main unit weight : 1500 Kg

Dimension : 1220x720x2200mm

Power Supply : AC220V 15A or specified by user

Contact Now

Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity

Model: RS-8000A

Purpose:

This testing machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.

Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).

Applications:

Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.

Specification:

Model	RS-8000A
Capacity (optional)	100KN, 200KN, 300KN
Unit (switchable)	N, KN, Kgf, Lbf, Mpa, Lbf/In², Kgf/mm²
Load resolution	1/500,000
Load accuracy	±0.25%
Load range	Rangless
Stroke (exclude the grips)	650mm, 800mm (optional)
Effective width	400mm , 600mm (optional)
Test speed	0.001~300mm/min
Speed accuracy	±0.5%
Displacement resolution	0.001mm
Software	Closed-loop control software
Motor	AC servo Motor
Transmission rod	High accuracy ball screw
Main unit dimension (WxDxH)	1220x720x2200mm
Main unit weight	1500 Kg
Power Supply	AC220V 15A or specified by user

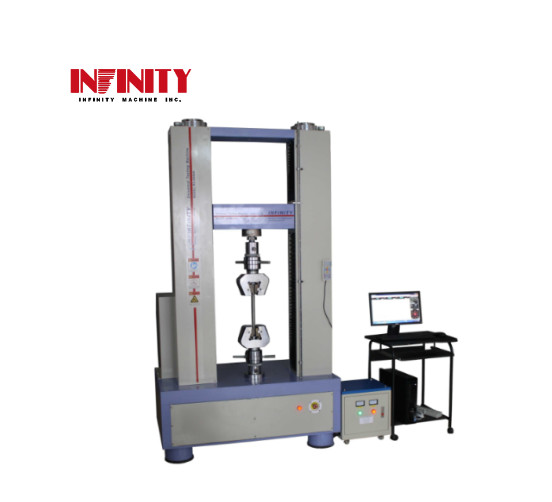

Picture:
