Electronic Drop Testing Machine

Name: Electronic Drop Testing Machine
Brand: Infinity Machine
Price: 1 USD

Brand Name : Infinity Machine

Model Number : DT3030

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Test amount : 2 sets

Test weight : 2Kgf (max)

Drop height : 300mm

Test speed : 5 - 25 times/min

Air Source : >0.5MPa

Dimension : W850xH370xD850mm

Weight : 80kg

Power supply : AC220V 50Hz 3A or specified by user

Contact Now

Electronic Drop Testing Machine

Model: DT3030

Application:

Micro Drop Test Machine Apply for micro-drop repeat testing of mobile phone, telephone handset, electronic dictionary, etc. To check if the products function normal or not after certain cycles tests.

Features:

All the testing informations is inputted by touch panel directly.

Adopt Japan SMC precise pneumatic component, durable using.

Adopt touch panel+PLC as program control.

Specification:

Model	DT3030
Test amount	2 PCS
Test load (max)	2Kgf (max)
Drop height	300mm (or specified)
Test speed	5 - 25 cycles/min
Test cycle	1~999,999times (cycle)
Dimension (WxDxH)	850x370x850mm
Weight	About 80kg
Air source	≥0.5MPa
Power supply	AC220V 50Hz 3A or specified by user

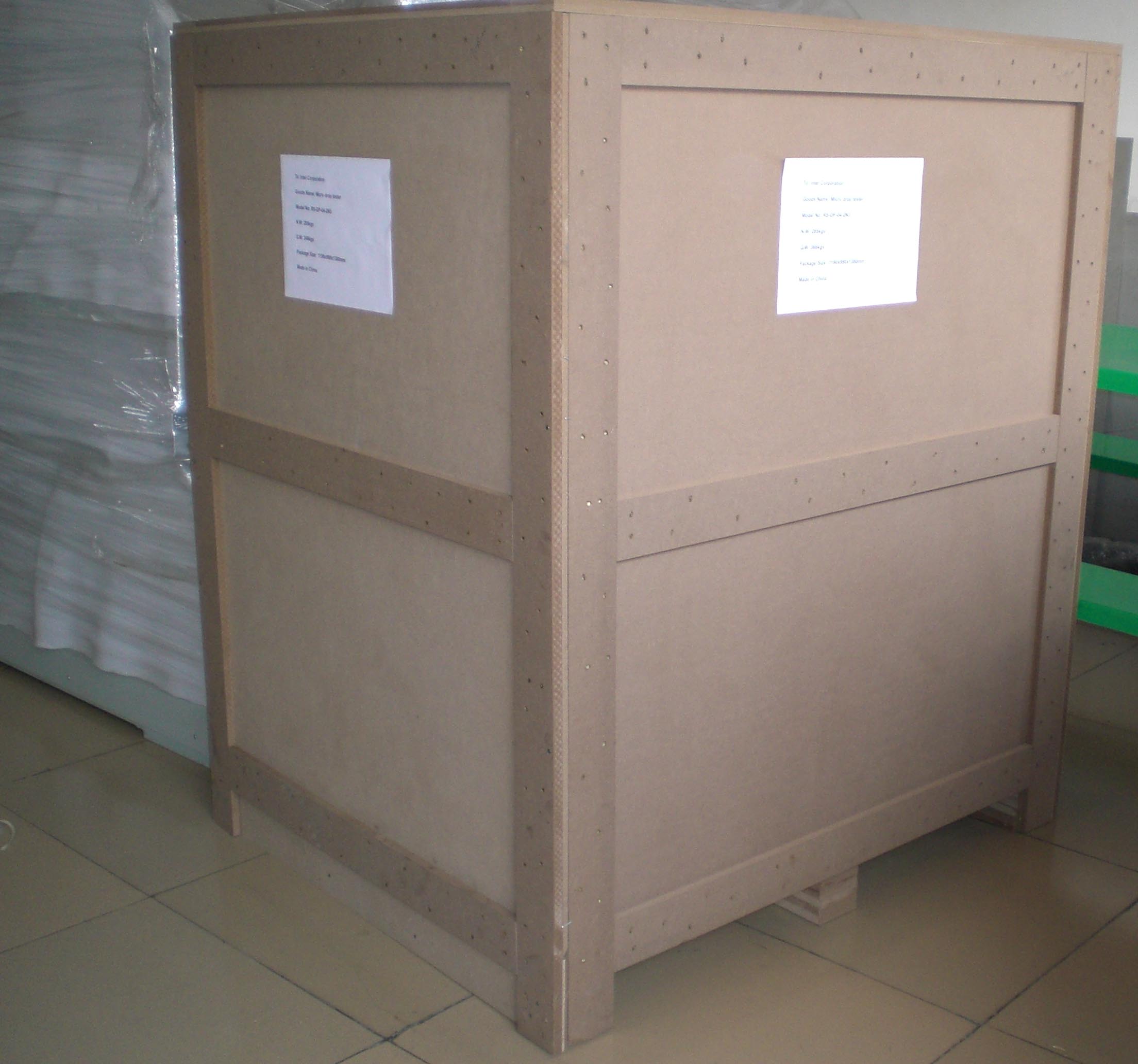

Package:

Electronic Drop Testing Machine
