High Frequency Package Testing Equipment , Vibration Test Bench 1 Year Warranty

Name: High Frequency Package Testing Equipment Vibration Test Bench 1 Year Warranty
Brand: Infinity Machine
Price: 1 USD

Brand Name : Infinity Machine

Model Number : RS - V Series

Certification : CE, ISO

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets per month

Delivery Time : Shipped in 15 days after payment

Packaging Details : Standard export wooden case with operation manual and video inside.

Name : High-frequency Vibration Test Bench

Standards : MIL, ASTM, IEC, ISO,BS, JIS

Size of power amplifier （LxWxH） : 720x545x1625

Rated displacement : 25

Vibrating manner : Cycling type

Standard application : IEC68-2-6, GB/T13310-1991, GB/T2423.10

Colour : Blue

Warranty : 1 year

Contact Now

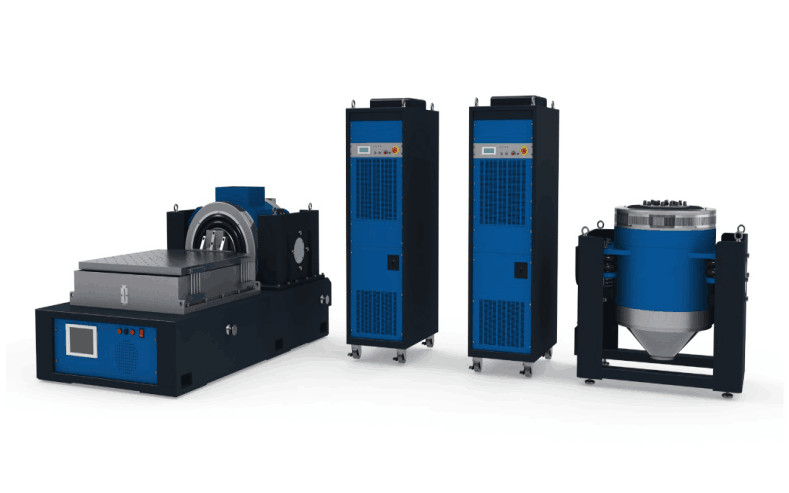

High-frequency Vibration Test Bench for Large-scale Household Appliances Transportation Vibration Simulation Experiment

Model:RS-V Series

Purpose:

The vibration test is to simulate the varied vibration environment encountered during the manufacturing, assembling, transporting and application stage of products, applied to certify the capacity of products in withstanding the environmental vibration. The vibration can be divided to the free vibration and forced vibration. The free vibration is a system under no any external force exerted to it and it vibrates at one or multiple natural frequencies. The natural frequency is the dynamic character of a system that counts on system mass and stiffness; and the forced vibration is occurred under certain external forced exerted to the system. Most structures would make certain level of vibration while external force is exerting on it, therefore we must carefully consider the vibration behavior while making engineering design task.

Features:

The main purpose of perform vibration test is to display out the potential flaw hidden in a product; let the flawless products pass through the screen process and the flawed products appear in earlier stage to repair of remove them in order to promote the reliability of products. This test model also can be applied to analyze the integrity of specimen and/or study its dynamic character.

Standards: MIL, ASTM, IEC, ISO,BS, JIS.

Specification:

Model		RS-V100	RS-V150	RS-V200	RS-V300	RS-V600	RS-V1000
System main spec	Rated sine vibration force(N)	980	1470	1960	2940	5880	9800
	Random thrust	980	1470	1960	2940	5880	9800
	Impact thrust(bmx)	1960	2940	3920	5880	11760	19600
	Rated Frequency range(Hz)	5-4500			5-4000	5-3000
	Rated Acceleration(m/s²) No-load	490	735	980			1176
	Rated speed(m/s)	1.75	1.15	1.75	1.1	1.5	1.8
	Rated displacement	25
	Max Testing load(Kg)	70			120	200	120
	Consumption power(KVA)	4.5		5.5	7.5	17	20
	Voltage(V)	3∮ 380V±10% AC50Hz
Vibration body	The weight of the moving parts(Kg)	2			2.7	5.6	8.3
	Table top size(mm)	∮110			∮150	∮200	∮200
	Table weight(Kg)	320			450	630	940
	Table size(LxWxH)(mm)	660x550x650			720x550x650	790x680x660	830x690x825
Power amplifier	Max output power(KVA)	1		2	3	8	10
	Weight of Power amplifier(Kg)	210		230	240	310	340
	Size of power amplifier (LxWxH)	720x545x1625
Vibration controller( Optional)		SDVC-2 SDVC-3 RDVC-2 RDVC-3
Cooling method		Cooling method
Standard application		IEC68-2-6, GB/T13310-1991, GB/T2423.10
Horizon sliding table ( Optional)		See below

Optional Horizon sliding table:

Model	Table outside size (mm)	The upper limit frequency(Hz)	Table weight (Kg)
Rs0303	300x300x30	2000	8.3
Rs0404	400x400x32	1800	15.6
Rs0505	500x500x25	1000	18.5
Rs0606	600x600x35	2000	26.1
Rs0707	700x700x35	1500	48.8
Rs0808	800x800x45	2000	83.5
Rs1010	1000x1000x50	1500	144.6
Rs1212	1200x1200x50	1200	204
Rs1515	1500x1500x50	1200	320
Rs2020	2000x2000x50	500	564
Comments	If there are special requirement for the horizon sliding table, we can do the custom-making.
