250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃

Name: 250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity 20
Brand: Infinity Machine
Price: 100 USD

250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃ Manufactures

Brand Name : Infinity Machine

Model Number : IE31408L

Place of Origin : Made In China

Certification : CE,ISO

MOQ : 1

Price : 100USD~5000USD

Packaging Details : Standard export wooden case with operation manual and video inside.

Delivery Time : Shipped in 15 days after payment

Payment Terms : T/T,D/P,L/C

Model number : IE31408L

Supply Ability : 200 sets per month

Thermal recovery time : Within 5Minc

Coolants : Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic

Warm Box : ●External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Wall Material :SUS304# Stainless Steel Plate ● Insulation Material: Hard Polyurethane Foam In

Carton size : WxHxD(mm) : 1800x2000x2500

Product name : Programmable Thermal Shock Test Chamber

Sample Stand : Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.

Cooling Rate (Cold storage area) : It Takes About 55min For RT To Drop To -40℃

Capacity : 250L

Humidity : 85%~98%RH

Temperature range : ± 0.5℃

Salt spray subside : 1.0~2.0ml/80cm2/h

Test room size : 900x600x450mm

Machine size : 1460x910x1280mm

Lab temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Saturator temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Power supply : AC220V 15A or specified by user

Water way : atered by itself while lack of water

Spray work time : Precise spray can work 2000 hours without crystalled jam.

Body material : Japanese PVC environmental protection & high anti-aging capability

Spray Material : transparent PVC

SSR : precisely digital thermal controller with spray protection system.

Standards : GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371

Application : This tester is used for the surface erosion resistance test of kinds of material processed by paint, plating, anodized.

Contact Now

Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃

Programmable Thermal Shock Test Chamber

Model Number: IE31408L

Product Description:

For users of the product machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.

Features:

Product Name: Environmental Test Chamber
Product name: Programmable Thermal Shock Test Chamber
Refrigeration compressor: German Bitzer Semi-compact Compressor
Thermal recovery time: Within 5Minc
Carton size : WxHxD(mm): 1800x2000x2500
Temperature fluctuation: ±1℃
Climate Test Chamber: Environmental Test Systems, Environmental Testing Equipment

Technical Parameters:

Model Number	IE31408L
Temperature range	-40℃ ～ +150℃
Temperature fluctuation	±1℃
Temperature uniformity	≦2.0℃
Thermal recovery time	Within 5Minc
Heating rate(thermal reserve zone)	It takes about 40 minutes for RT to rise to +150℃
Cooling Rate(Cold storage area)	It takes about 60min for RT to drop to -40℃
Interior dimension :WxHxD(mm)	600×850×800
Carton size :WxHxD(mm)	1800x2000x2500
Warm Box	●External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate ● Insulation material: hard polyurethane foam insulation layer + glass fiber
Box Door	For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window	The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation
Sample Stand	Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor	German Bitzer semi-compact compressor
Coolants	Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system	Water-cooled
Safety protection device	Heater anti-burning protection; Heater overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection
Power Supply	AC380;V50Hz;25KW

Support and Services:

Our Programmable Thermal Shock Test Chamber provides technical support and service to ensure our products operate efficiently and reliably. Our experienced technicians are available to answer your questions and provide assistance in setting up and maintaining your equipment.

We offer a comprehensive range of technical support and service, including:

Installation and setup services
On-site troubleshooting and maintenance
Telephone and email support
Remote monitoring of equipment
Software updates and upgrades
Replacement parts and consumables

Our team of experts is available to help you with any questions or problems you may have. We are committed to providing the highest level of support and service for your Programmable Thermal Shock Test Chamber.

Packing and Shipping:

Packaging and Shipping for Programmable Thermal Shock Test Chamber:

Programmable Thermal Shock Test Chamber is packaged with professional foam and shock-proof material.
It is shipped in a wooden box of appropriate size.
The wooden box is then placed in a sealed container with a damping material.
The container is fixed with a rope to ensure its safety.

.

Product Tags:

Programmable Thermal Shock Test Chamber

250L Thermal Shock Test Chamber

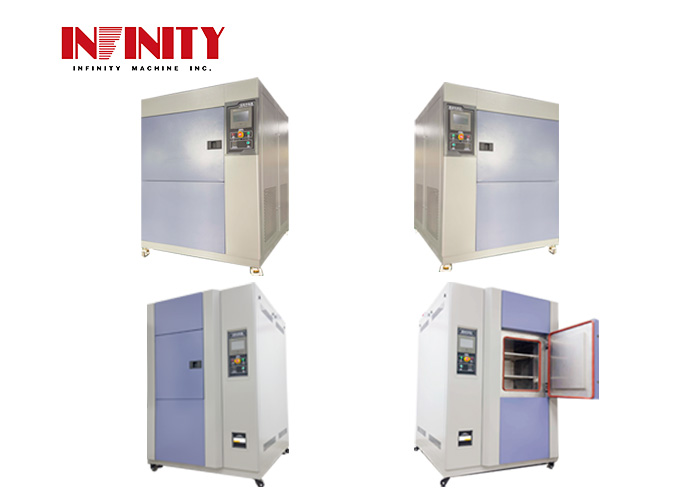

250L Programmable Thermal Shock Test Chamber IE31408L Temperature Uniformity ≦2.0℃ Images
