Water Cooled Thermal Shock Test Chamber Model Number IE31225L Temperature Fluctuation ±1℃

Infinity Machine International Inc.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

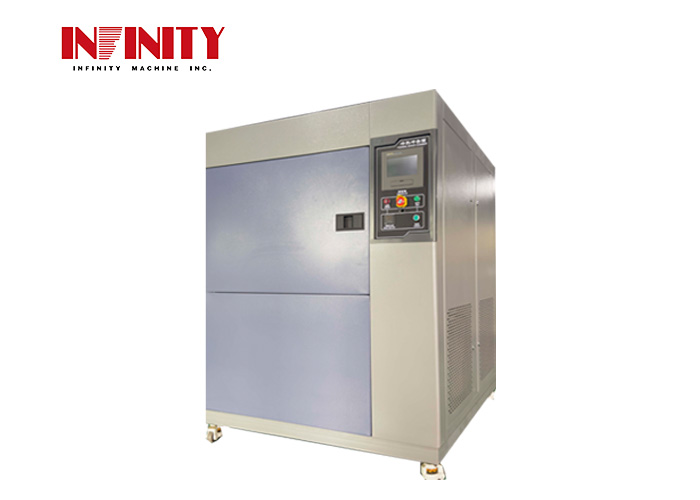

Water Cooled Thermal Shock Test Chamber Model Number IE31225L Temperature Fluctuation ±1℃

  • 1
  • 2

Brand Name : Infinity Machine

Model Number : IE31225L

Place of Origin : Made In China

Certification : CE,ISO

MOQ : 1

Price : Negotiable

Packaging Details : Standard export wooden case with operation manual and video inside.

Delivery Time : Shipped in 15 days after payment

Payment Terms : T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability : 200 sets per month

Coolants : Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic

Cooling Rate (Cold storage area) : It Takes About 55min For RT To Drop To -40℃

Temperature fluctuation : ±1℃

Carton size : WxHxD(mm) : 1600×1900×2250

Heating rate (thermal reserve zone) : It Takes About 35min For RT To Rise To +150℃

Condenser system : Water-cooled

Sample Stand : Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.

Temperature range : ± 0.5℃

Capacity : 250L

Humidity : 85%~98%RH

Salt spray subside : 1.0~2.0ml/80cm2/h

Test room size : 900x600x450mm

Machine size : 1460x910x1280mm

Lab temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Saturator temperature : NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C

Power supply : AC220V 15A or specified by user

Water way : atered by itself while lack of water

Spray work time : Precise spray can work 2000 hours without crystalled jam.

Body material : Japanese PVC environmental protection & high anti-aging capability

Spray Material : transparent PVC

SSR : precisely digital thermal controller with spray protection system.

Standards : GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371

Application : This tester is used for the surface erosion resistance test of kinds of material processed by paint, plating, anodized.

Contact Now

Thermal Shock Test Chamber Model Number IE31225L Temperature Fluctuation ±1℃

Programmable Thermal Shock Test Chamber

Model Number: IE31225L

Water Cooled Thermal Shock Test Chamber Model Number IE31225L Temperature Fluctuation ±1℃

Product Description:

Programmable Thermal Shock Test Chamber for users of the product machine (or components), electrical appliances, instruments, materials, coatings, coatings, etc., for the corresponding climate change test, suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc., high and low temperature, wet and thermal test, simulate temperature and humidity changes under the condition of cold and thermal shock test, so as to evaluate the quality of the test product.

Features:

  • Product Name: Programmable Thermal Shock Test Chamber
  • Thermal recovery time: Within 5Minc
  • Warm Box:
  1. External Wall Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole
  2. Inner Wall Material :SUS304# Stainless Steel Plate
  3. Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber
  • Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
  • Power Supply : AC380;V50Hz;22KW
  • Temperature fluctuation: ±1℃

Technical Parameters:

Model Number IE31225L
Temperature range -40℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃

Thermal recovery time

Within 5Minc

Heating rate (thermal reserve zone)

It takes about 40 minutes for RT to rise to +150℃

Cooling Rate (Cold storage area)

It takes about 60min for RT to drop to -40℃

Interior dimension :WxHxD(mm)

500x750x600

Carton size :WxHxD(mm)

1600×1900×2250
Warm Box

●External wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole

● Inner wall material :SUS304# stainless steel plate

● Insulation material: hard polyurethane foam insulation layer + glass fiber

Box Door For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature
Inspection window The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation
Sample Stand Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.

Refrigeration compressor

German Bitzer semi-compact compressor

Coolants

Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system

Water-cooled

Safety protection device Heater anti-burning protection; Heater overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection
Power Supply AC380;V50Hz;22KW

Applications:

Infinity Machine IE31225L Programmable Thermal Shock Test Chamber

Infinity Machine IE31225L Programmable Thermal Shock Test Chamber is a top-notch environmental test equipment certified by CE and ISO. It is made in China with reliable quality assurance. The minimum order quantity is 1 set. The package is a master carton. The delivery time is 200 sets per month. The payment terms are T/T, D/P, L/C. It takes about 55 minutes for the room temperature to drop to -40℃. The power supply is AC380V, 50Hz, 22KW, and the refrigeration compressor is German Bitzer semi-compact compressor. Besides, it also has a variety of safety protection devices, such as heater anti-burning protection, heater overcurrent protection, circulating fan overcurrent overload protection, compressor high pressure protection, compressor overheat protection, compressor overcurrent protection, overvoltage underinverse-phase protection, circuit breaker and leakage protection. The carton size is WxHxD(mm): 1600×1900×2250.

Customization:

Customized Programmable Thermal Shock Test Chamber from Infinity Machine

Programmable Thermal Shock Test Chamber from Infinity Machine have been used for testing a variety of products in diverse industries, from electronics and food to automotive and aerospace.

IE31225L Programmable Thermal Shock Test Chamber
  • Brand Name: Infinity Machine
  • Model Number: IE31225L
  • Place of Origin: Made In China
  • Certification: CE,ISO
  • Minimum Order Quantity: 1set

Support and Services:

Programmable Thermal Shock Test Chamber Technical Support & Services

We provide a comprehensive range of technical support and services for our Programmable Thermal Shock Test Chamber. Our services include:

  • Installation & commissioning
  • Preventative maintenance & calibration
  • Spare parts
  • On-site service & repair
  • Software & firmware updates
  • Training & user support

Our team of experienced engineers are available to help with any technical queries you may have. We are committed to providing the highest level of customer service and satisfaction.

Packing and Shipping:

Programmable Thermal Shock Test Chamber Packaging and Shipping:
The environmental test chamber is shipped in a wooden crate and is secured with high-density foam and bubble wrap. It is then securely sealed to ensure safe delivery. The crate also includes custom-cut foam inserts to protect the chamber during shipment.
