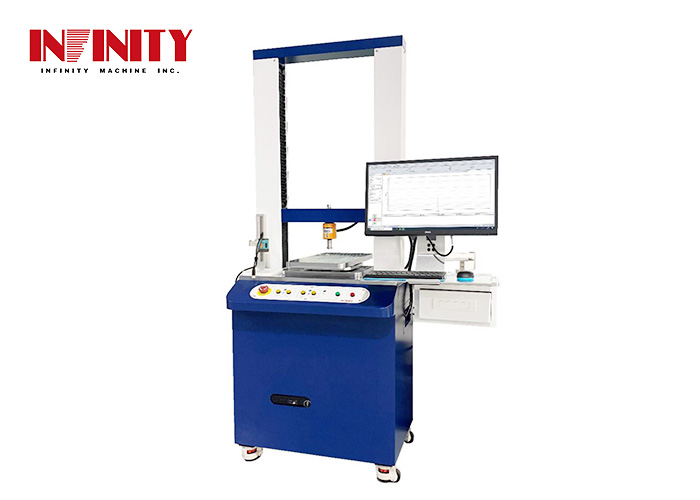

Universal Tensile Testing Machine Product Model:IF3231 Force Accuracy ±0.3%
Model Number:IF3231
Product Description:
The equipment is used for tensile and pressure testing of various electronic components, materials and products to determine their structural resistance strength. It can carry out destructive pressing or stretching, automatically judge and end the test after rupture, and obtain the results of the maximum force value and displacement of the product. The constant force test can be carried out to obtain the life of the product under a certain force.
Features:
- The code scanner is configured to scan the product QR code, which makes it easier to manage the test data of the corresponding product.
- Real-time display of the current force value and displacement changes, can display: force-stroke (kgf-mm), or force-time (kgf-time) curve.
- Report tests can be selected as needed and printed directly or saved as documents in Word, Excel, PDF and other formats
- The motion axis is driven by Japanese Panasonic servo motor and precision ball screw transmission, which is low noise and durable.
- The operating interface has three switchable languages: Simplified Chinese/Traditional Chinese/English, and the force value units are N, Lb, gf, and kgf, which are switchable for global customers.
- Equipped with manual X and Y platforms, the test position can be changed arbitrarily.
- The open force value protection function sets a protection value based on the conventional test force. When the value is exceeded during operation or jogging, the movement will automatically stop to reduce damage to equipment and precision samples.
- The floor-standing structural design of the whole machine brings the operator closer to the testing area and makes it easier to load and unload samples.
- The test method management logic is clear, and the correctness of parameters is checked and error information is provided when creating a new method. Test data is stored in a local database for easy access and query.
- According to the customer supply agreement, it has data upload functions such as Trace and PDCA.
Technical Parameters:
| Items | Specification |
| Force value sensor capacity: | 500Kg |
| Force accuracy: | ±0.3% |
| Displacement measurement accuracy: | ±0.05mm |
| Displacement resolution: | 0．001mm |
| Test Stroke: | 0~600mm |
| Effective width: | 420mm |
| Testing Speed: | 0~1000mm/min |
| Speed Accuracy : | ±0.5% |
| Scan code reading accuracy: | ≥4mil |
| Machine size (WxDxH): | 1167x700x1770mm |
| Weight: | 185kg |
| Power Supply: | AC220V 5A 50Hz or specified |
Support and Services:
Universal Tensile Testing Machine Support and Service
We provide a comprehensive array of technical support and service options for our Universal Tensile Testing Machine. Our team of knowledgeable professionals is available to answer any questions you may have about our products. We offer the following services:
- On-site installation and training
- Remote troubleshooting and technical support
- Software support and upgrades
- Spare parts and accessories
- Warranty repairs and maintenance
We strive to provide the highest quality technical support and service for our Universal Testing Machine. If you have any questions or concerns, please don't hesitate to contact us.
Packing and Shipping:
Packaging and Shipping for Universal Tensile Testing Machine:
The Universal Tensile Testing Machine will be shipped in durable cardboard box accompanied by polyurethane foam to ensure safe shipping. The box should be sealed with industrial strength adhesive tape, with a prominent label indicating the contents and destination. The box should be placed on a pallet and strapped with industrial strength straps to ensure a safe transport.
