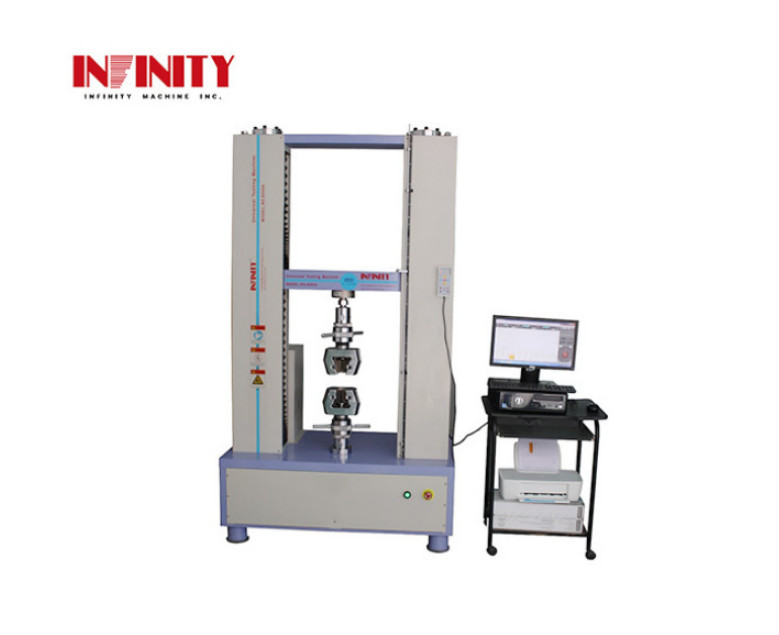

Servo Controlled Universal Tensile Testing Machine
Product Model:IF2A1-100KN
Product Description:
The Servo Controlled Universal Tensile Testing Machine is a mechanical universal testing machine with a wide range of applications. It is capable of testing materials such as metals, plastics, rubbers, films, textiles, composites, and other materials, and can also be used for tensile, compression, bending, shear, peel, tear, and other tests. This machine is known for its high accuracy and reliability, with a load accuracy of ±0.25%. The unit is switchable between N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2, and has a load range of Rangless. The test speed ranges from 0.001~300mm/min, making it suitable for various tests with different speeds. This machine is an ideal choice for quality control, material research and development, and other testing needs.
Technical Parameters:
| Model | IF2A1-100KN |
| Capacity | 100KN |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
| Load resolution | 1/500,000 |
| Load accuracy | ±0.25% |
| Load range | Rangless |
| Stroke (exclude the grips) | 650mm, 800mm (optional) |
| Effective width | 400mm , 600mm (optional) |
| Test speed | 0.001~300mm/min |
| Speed accuracy | ±0.5% |
| Displacement resolution | 0.001mm |
| Software | Closed-loop control software |
| Motor | AC servo Motor |
| Transmission rod | High accuracy ball screw |
| Main unit dimension (WxDxH) | 1220x720x2200mm |
| Main unit weight | 1500 Kg |
| Power Supply | 380V AC, 50 HZ, 3 PHASE |

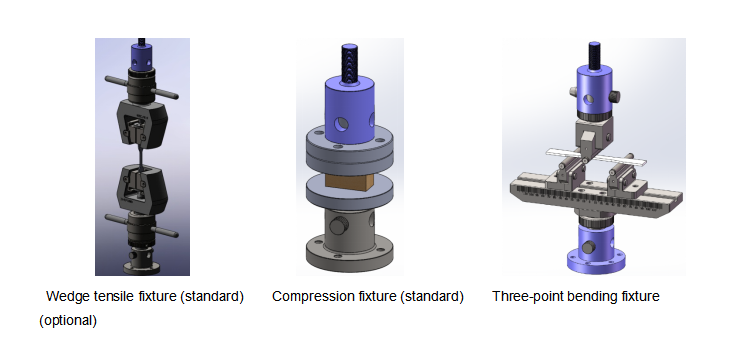

Fixtures (can be customized):
Features:
High accuracy:
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
Applications:
Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.s.
Support and Services:
Technical Support and Service for Universal Testing Machine
At [Manufacturing Company], we understand the importance of quality control and testing in production. Our Universal Testing Machine (UTM) is designed to yield accurate test results quickly and efficiently. That’s why we provide technical support and service to ensure that our customers can use our products with confidence.
Our technical support team is available 24/7 to answer any questions you may have about the UTM. We provide personalized instructions on how to use the UTM to maximize efficiency, as well as troubleshooting advice in case of any issues. Additionally, our team of experienced technicians can provide on-site support to diagnose and repair any problems.
Our service plans cover regular maintenance, calibration, and repairs. We also offer extended warranties for extra peace of mind. And if you need any spare parts, we have a wide variety of genuine components available for purchase.
At [Manufacturing Company], we are committed to providing the best technical support and service for our Universal Testing Machine. If you have any questions or need assistance, please don’t hesitate to contact us.
Packing and Shipping:
Packaging and Shipping of the Universal Testing Machine:
- After the machine is tested, it will be carefully wrapped and packaged in a wooden box.
- The package will be labeled “Universal Testing Machine” and shipped to the customer.
- The package will be sent via air freight or a suitable shipping method.
- The package will be delivered to the customer’s address.
