Touch Screen Salt Spray Test Chamber For Electronic Products Salt Spray Corrosion Test

Touch Screen Salt Spray Test Chamber Used for Electronic Products Salt Spray Corrosion Test
Model:IE42 Series


Equipment overview:
This series of equipment simulates the dispersion system composed of tiny salt droplets in the atmosphere, and is widely used to conduct salt spray corrosion tests on products in industries such as electronics, electrical engineering, automotive, motorcycle, hardware, plastics, FPC soft boards, etc. after electroplating, painting, coating, and anodizing to evaluate their surface corrosion resistance.

Standards:

• GB/T242317-2008 Salt spray test method
• GB/T242318-2000
• GB/T10125-1997 Artificial atmosphere corrosion test salt spray test
• GB/T10587-2006 Technical conditions for salt spray test chamber
• GB105932-1990 Measurement methods for environmental parameters of electrical and electronic products
• GB/T1765-1979 Testing of paint film for moisture and heat resistance, salt spray resistance, and weather resistance (artificially accelerated)
• GB/T242317-1993
• GB/T1771-2007Determination of neutral salt spray resistance of paints and varnishes - Neutral salt spray test (NSS test)
• GB5938-86
• GB/T1771-91Acetate salt spray test (AASS test

Features:

• Equipped with a 7-inch LCD touch screen, independently developed application programs, and P I. D Automatic calculation, Chinese and English conversion, with temperature setting, time setting, spray, demisting and other functions.
• The trial drug supplement is concealed and does not require opening the lid for filling. At the same time, a water level observation window is attached on the side for easy cleaning.
• The special glass nozzle is used, and the spray water supply pipe is equipped with a salt water filter, which can last for 4000 hours to ensure that there is no blocking of crystal salt.
• The control components are selected from well-known brands and adopt a structure of upper and lower water electricity separation to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.
• According to the customer installation site can be manually and automatically add water, easy to use.
• Continuous spray and intermittent spray can be quickly and freely switched, easy to operate.

Specification parameters:

Electronic Products Salt Spray Test Chamber

Corrosion Test Salt Spray Test Chamber

Touch Screen Salt Spray Test Chamber

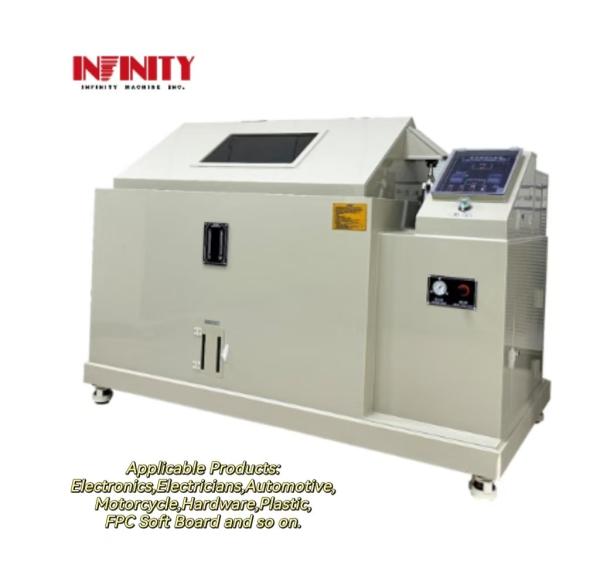

Touch Screen Salt Spray Test Chamber For Electronic Products Salt Spray Corrosion Test Images
