PVC Material Salt Spray Test Chamber for Electronic Salt Spray Corrosion Test

  • 1
  • 2

Brand Name : Infinity Machine

Model Number : IE44 series

Certification : CE ISO

Place of Origin : Made In China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SET PER MONTH

Delivery Time : 20-30 days after order confirmed

Packaging Details : Clear sheet+sponge+wood carton

Product name : Salt Spray Test Chamber

Model : IE44 series

Applicable standard : GB/T242317-2008 Salt spray test method

Laboratory temperature range : RT+5℃~60℃

Spray mode : Continuous spray+intermittent spray

Capacity : 60L,90L,120L,160L,200L

Power : Electronic

Warranty : 1 Year

Contact Now

PVC Material Salt Spray Test Chamber Used for Electronic Salt Spray Corrosion Test

Model:IE44 series

Equipment Overview:

This series of equipment simulates the dispersion system composed of tiny salt droplets in the atmosphere, and is widely used to conduct salt spray corrosion tests on products in industries such as electronics, electrical engineering, automotive, motorcycle, hardware, plastics, FPC soft boards, etc. after electroplating, painting, coating, and anodizing to evaluate their surface corrosion resistance.

Applicable standards:

  • GB/T242317-2008 Salt spray test method
  • GB/T242318-2000
  • GB/T10125-1997 Artificial atmosphere corrosion test salt spray test
  • GB/T10587-2006 Technical conditions for salt spray test chamber
  • GB105932-1990Measurement methods for environmental parameters of electrical and electronic products
  • GB/T1765-1979 Paint film test for determination of resistance to heat, moisture, salt spray and weather (artificially accelerated)
  • GB/T242317-1993
  • GB/T1771-2007 )Determination of neutral salt spray resistance of paints and varnishes - Neutral salt spray test (NSS test)
  • GB5938-86
  • GB/T1771-91Acetate spray test (AASS test)

Features:

  • The test supplement is hidden, no need to open the lid filling. At the same time, there is a water level observation window on the side, which is convenient for cleaning.
  • Adopt special glass nozzle,the spray water supply pipe is equipped with a salt water filter, which can last for 4000 hours to ensure that there is no blocking of crystal salt.
  • The control components are selected from well-known brands and adopt a structure of upper and lower water electricity separation to avoid safety hazards, prevent circuit corrosion and aging, maximize the service life of electrical components, and make maintenance easier.
  • According to the customer installation site can be manually and automatically add water, easy to use.
  • Continuous spray and intermittent spray can be quickly and freely switched, easy to operate.

Specification parameter:

Model

IE4460L

IE4490L

IE44120L

IE44160L

IE44200L
Laboratory temperature range

RT+5℃~60℃
Pressure barrel temperature range

RT+5℃~70℃
Temperature fluctuation

±0.5℃
Temperature uniformity

≦1.0℃
Salt spray deposition amount

1～3ml/h.80cm²
Spray Pressure

1.00±0.01kgf/cm²
Spray mode

Continuous spray+intermittent spray
Experimental effective internal volume

150L

270L

576L

800L

1200L

Inner box size:

WxHxD(mm)

600*450*400

 900*600*500 1200*800*600 1600*1000*500 2000*1000*600

Outer box size:

WxHxD(mm)

 1050*700*950 1400*850*1100 2080*1050*1300 2430*1250*1400 2730*1250*1400
Box Structure

●Indoor and outdoor chambers: The indoor and outdoor chambers are made of A-grade PVC polyethylene board, with a total thickness of 8mm, and are resistant to acid, alkali, and temperature up to 78 ℃.

●Laboratory sealing cover: The laboratory sealing cover is made of Grade A PVC board, with a thickness of 8mm and surrounding reinforcement of 13mm. It is resistant to acid, alkali, and temperature of 78 ℃
Opening method

Manual opening

One-click automatic cover opening
Water refill method Automatic/manual dual water supply mode, with one set of automatic inlet water purifier
Sample Holder The laboratory basket frame adopts a plane indexing frame, the placing Angle is 15 degrees and 30 degrees, and the direction of falling fog and receiving fog is completely the same.
Safety protection devices

●When the salt water is low, the heater power is automatically cut off.

●When the temperature exceeds, the heater power supply is automatically cut off.

●When the laboratory water level is low, the heater power supply is automatically cut off.
Power supply AC220V;50Hz;1.5KW AC220;V50Hz;2.5KW AC220;V50Hz;3.5KW AC220;V50Hz;4.5KW AC380;V50Hz;5KW

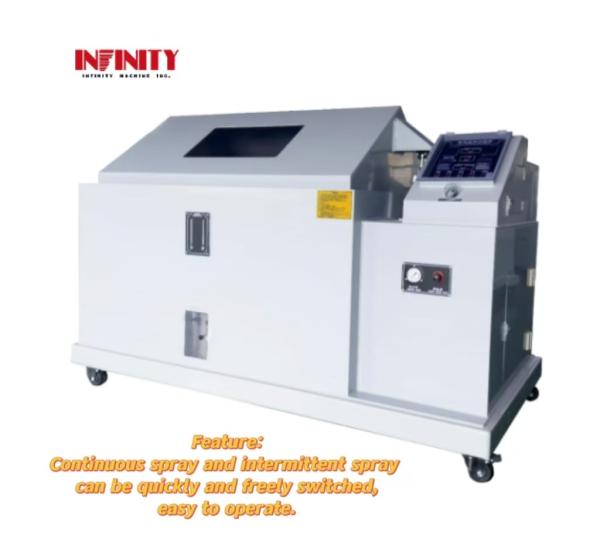

Equipment picture:

PVC Material Salt Spray Test Chamber for Electronic Salt Spray Corrosion Test
