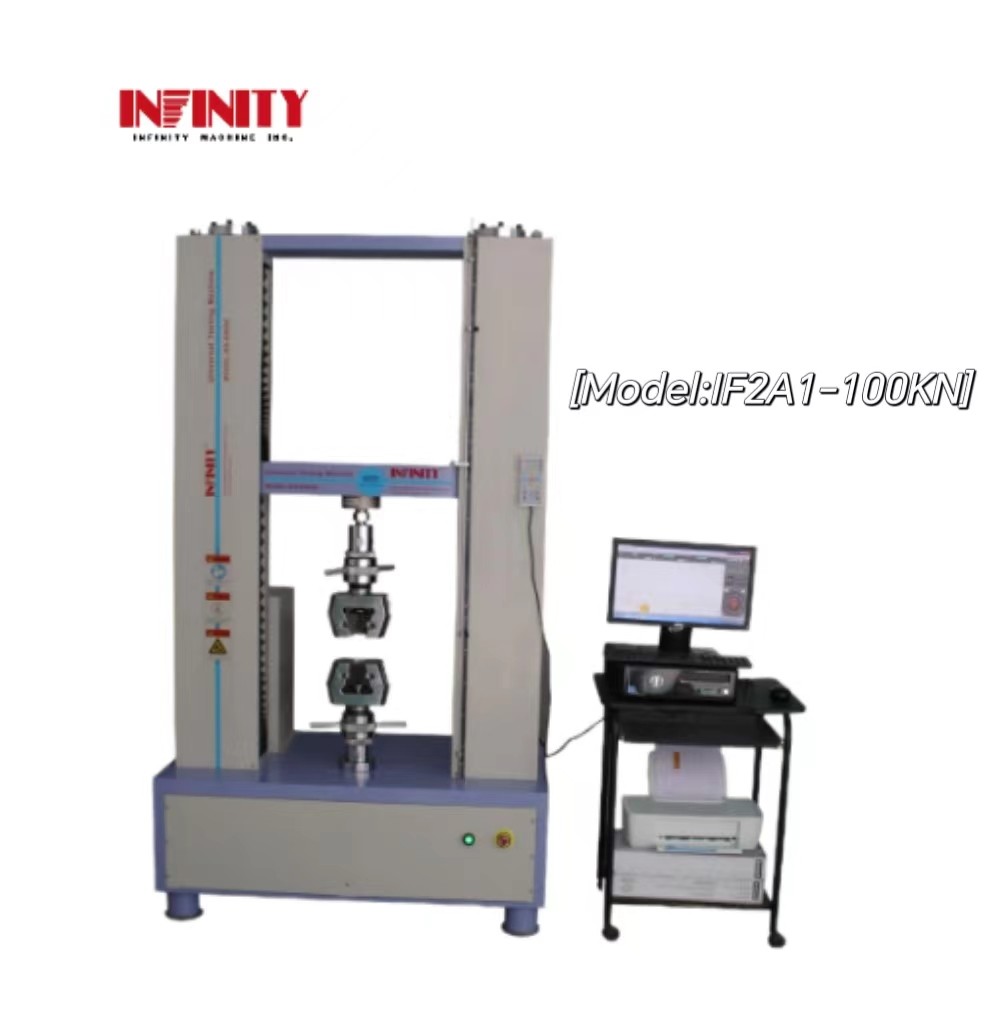

600mm Effective Width Servo Controlled Universal Tensile Testing Machine
Product Description:
The Servo Controlled Universal Tensile Testing Machine is designed to be versatile, with switchable units including N, KN, Kgf, Lbf, Mpa, Lbf/In2, and Kgf/mm2. This allows users to easily switch between units depending on their testing needs. In addition, this machine is available in two stroke lengths – 650mm and 800mm (optional) – and two effective widths – 400mm and 600mm (optional) – providing flexibility in testing a wide range of products and materials.
With a load accuracy of ±0.25%, the Servo Controlled Universal Tensile Testing Machine is able to provide reliable and consistent results for various applications, including tension, compression, bending, shearing, peeling, tearing, and more. Its user-friendly interface and easy-to-use software make testing simple and efficient.
Overall, the Servo Controlled Universal Tensile Testing Machine is a top-of-the-line product that offers high accuracy, versatility, and reliability for various testing requirements. Whether you are conducting research and development or quality control testing, this machine is the perfect tool to ensure accurate and consistent results.
Features:
- Product Name: Servo Controlled Universal Tensile Testing Machine
- Test speed: 0.001~300mm/min
- Stroke (exclude the grips): 650mm, 800mm (optional)
- Multi-function: Can Coordinate With Different Grips, The Tests Of Tensile, Compression, Bending, Shearing, Tearing, Peeling, Etc Can Be Done
- Unit (switchable): N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
- Software: Closed-loop Control Software
Technical Parameters:
| Model | IF2A1-100KN |
| Main Unit Weight | 1500 Kg |
| Effective Width | 400mm, 600mm (optional) |
| Stroke (exclude the grips) | 650mm, 800mm (optional) |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
| Capacity | 100KN |
| Software | Closed-loop Control Software |
| Load Accuracy | ±0.25% |
| Speed Accuracy | ±0.5% |
| Power Supply | 380V AC, 50 HZ, 3 PHASE |
Applications:
The IF2A1-100KN Servo Controlled Universal Tensile Testing Machine is suitable for a wide range of applications. It can be used to test the strength and durability of various materials such as metals, plastics, and rubber. The machine is equipped with a high-accuracy ball screw transmission rod and an AC servo motor, which ensures precise testing results. The load accuracy of the machine is ±0.25%, and the strength accuracy can reach up to ±0.25%, while the displacement accuracy is up to 0.001mm.
The IF2A1-100KN Servo Controlled Universal Tensile Testing Machine is widely used in different scenarios and occasions. It is commonly used in industries such as construction, automotive, aerospace, and research laboratories. This machine is ideal for testing the strength and durability of various materials used in these industries. The machine is also used in academic institutions for research and development purposes.
The delivery time for the IF2A1-100KN Servo Controlled Universal Tensile Testing Machine is 20-30 days after order confirmation. The payment terms accepted include TT, PAYPAL, Moneygram, and more. The supply ability of the machine is 200 sets per month, which ensures that customers can get their orders on time.
Customization:
Product Customization Services:
- Brand Name: Infinity Machine
- Model Number: IF2A1-100KN
- Place of Origin: Made In China
- Certification: CE ISO
- Minimum Order Quantity: 1
- Price: Negotiate
- Packaging Details: Clear sheet+sponge+wood carton
- Delivery Time: 20-30 days after order confirmed
- Payment Terms: TT PAYPAL Moneygram and so on
- Supply Ability: 200 sets / month
- Unit (switchable): N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
- Displacement resolution: 0.001mm
- Purpose: This Machine Is Suitable For Adhesive Tape, Rubber, Plastic, Sponge, Waterproof Materials, Electric Wire & Cable, Textile, Net Rope, Non-woven Fabrics Etc, Nonmetal Materials And Metallic Thread, Metal Foil, Steel Plate And Metal Rod To Do Tensile, Compression, Bending, Peeling, Cutting, Tearing Shearing Tests. Computer Control Style RS-8000A ( It Is Used For Spot Test In Production Line, Can Do Many Data Analysis And Print The Test Report, Also Can Used For Material’s Cyclic Test And Holding Test ).
- Main unit dimension (WxDxH): 1220x720x2200mm
- Main unit weight: 1500 Kg
This Servo Controlled Universal Tensile Testing Machine is a high-precision and advanced material testing equipment. It is designed to perform tensile, compression, bending, peeling, cutting, tearing, and shearing tests on various nonmetal materials and metallic thread, metal foil, steel plate, and metal rod. The machine allows switching units between N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2. It has a displacement resolution of 0.001mm, making it highly accurate. The main unit dimension is 1220x720x2200mm, and the weight is 1500 Kg. The machine is computer controlled with the RS-8000A style, which allows for spot tests in the production line, data analysis, test report printing, and material's cyclic test and holding test.
Support and Services:
The Servo Controlled Universal Tensile Testing Machine is a highly technical product and requires specialized knowledge to operate and maintain. To ensure optimal performance, we offer comprehensive technical support and services including:
- Installation and setup assistance
- Training for operators and maintenance personnel
- Calibration and verification services
- Preventative maintenance programs
- Repair and replacement parts
- 24/7 technical support
Our team of experts is dedicated to ensuring that your Universal Testing Machine operates efficiently and accurately. Contact us for more information on our technical support and services.
Packing and Shipping:
Product Packaging:
- Dimensions: 120cm x 80cm x 150cm
- Weight: 300kg
- Materials: Wood and metal
- Includes: Servo Controlled Universal Tensile Testing Machine, power cord, instruction manual
Shipping:
- Delivery method: Freight
- Delivery time: 7-10 business days
- Shipping cost: Calculated at checkout
- Shipping restrictions: Only available for shipping within the continental United States
FAQ:
What is the brand name of this product?
A: The brand name of this product is Infinity Machine.
What is the model number of this product?
A: The model number of this product is IF2A1-100KN.
Where is this product made?
A: This product is made in China.
What certifications does this product have?
A: This product has CE and ISO certifications.
What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1.
What is the packaging detail for this product?
A: The packaging detail for this product is clear sheet+sponge+wood carton.
What is the delivery time for this product?
A: The delivery time for this product is 20-30 days after order confirmed.
What are the payment terms for this product?
A: The payment terms for this product are TT, PAYPAL, Moneygram, and so on.
What is the supply ability for this product?
A: The supply ability for this product is 200 sets / month.
What is the price of this product?
A: The price of this product is negotiable.
