Product Description:
One of the key features of this wire pull tester is its use of a Japan Panasonic AC Servo Motor Drive, which provides high precision positioning accuracy and low noise operation for long-term use. The machine can operate in a test angle range of 0~1800, and the error is only ±10, ensuring accuracy in all test conditions.
The Cable Pull Strength Tester also features a special power supply rectifier circuit that improves the machine's long-term use and anti-interference capabilities. Additionally, the machine uses a high-precision photoelectric switch from Korean manufacturer AUTONIS for origin induction, with a high pulse frequency and durable use.
The machine is controlled via an easy-to-use MCGS 7" TFT LCD touch screen controller, which allows for program input and PLC control. The interface is in Chinese, making it easy to control for users of all skill levels. Test conditions can be set via the touch screen or LCD screen, including angle setting, speed, test times, measured times, rotation stay time, and residence time after multiple tests.
The Cable Pull Strength Tester can test up to five wires simultaneously, with each group equipped with a signal (conduction test) test line and indicator light. Once the wire is broken (the loop signal is not formed), the current station indicator is off, and the counting is stopped.
The device is capable of testing wires with weights of 50g, 100g, 150g, 250g, and 300g, making it suitable for a wide range of applications.
In summary, the Cable Pull Strength Tester is a reliable and efficient multi-station wire pull test device that can accurately test the strength and durability of wires. With its high-precision positioning accuracy, durable components, and easy-to-use interface, this machine is ideal for use in a variety of applications.
Features:

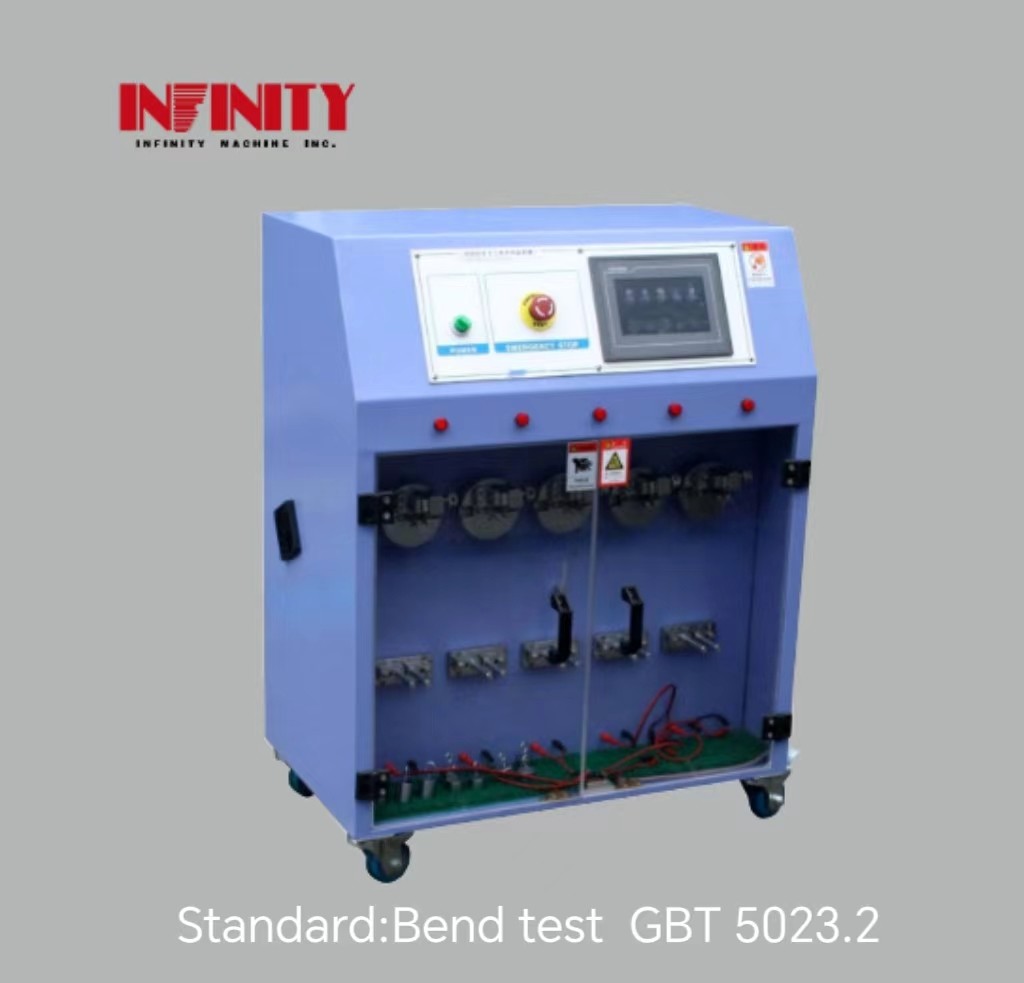

- Product Name: Five Stations Wire Pull Testing Machine
- Standard: Bend Test GBT 5023.2
- Test angle range: 0～±180°
- Test number range: 1 ~ 9,99,999 Times
- Test speed: 6~420 ± 25 Rad/s (settable)
- Application: The Equipment Is Suitable For Multi-core Cable, Communication Cable, Headphone Cable, Flat Cable, Signal Cable, Charging Cable And Other Wires For Swing Folding Resistance Test. The Test Method Is: One End Of The Wire Is Short Held, Fixed On The Rotating Plate, The Wire Is Vertically Downward, The Other End Binds The Weight, The Rotating Plate Rotates Left And Right, Causing Repeated Bending Of The Wire, After Many Tests, To Evaluate Whether The Wire Conduction Is Good.
- Keywords: Cable Pull Strength Tester, 5-Station Wire Pull Testing Equipment
Technical Parameters:
| Product name: | Five Stations Wire Pull Testing Machine |
| Minimum display angle: | 1° |
| Drive: | Panasonic Servo Motor In Japan |
| Features: | Using Japan Panasonic AC Servo Motor Drive, High Precision Positioning Is Accurate, Low Noise, Can Be Used For A Long Time. Test Angle: 0~1800,Error: ± 10. Special Power Supply Rectifier Circuit Is Used To Improve The Long-time Use Ability And Anti-interference Of The Motor And Execution Components. The Korean AUTONIS High-precision Photoelectric Switch Is Used For Origin Induction, With High Pulse Frequency And Durable Use. Using MCGS 7 " TFT LCD Touch Screen Controller As Program Input, PLC Control, Chinese Interface, Easy To Control. The Test Conditions Are Set By The Touch Screen Or LCD Screen (Angle Setting, Speed, Test Times, Measured Times, Rotation Stay Time, And Residence Time After Multiple Tests). Five Wires Can Be Tested Simultaneously. Each Group Is Equipped With A Signal (conduction Test) Test Line And Indicator Light. Once The Wire Is Broken (the Loop Signal Is Not Formed), The Current Station Indicator Is Off And The Counting Is Stopped. |
| Host size: | W780xD460xH940mm |
| Test speed: | 6~420 ± 25 Rad/s (settable) |
| Standard: | Bend Test GBT 5023.2 |
| Test number range: | 1 ~ 9,99,999 Times |
| Batch stay time: | 1~10 Minutes |
| Motor acceleration and deceleration time: | <45ms |
Applications:
The host size of the INFINITY IC2095 is W780xD460xH940mm and it has a motor acceleration and deceleration time of less than 45ms. The reaction member can be specified before ordering and includes R1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm. The batch stay time can be set from 1 to 10 minutes. The host weight is approximately 150kg.
This wire pull tester is suitable for various product application occasions and scenarios. It can be used in the electronics industry for testing the tensile strength of electronic wires and cables. It is also useful in the automotive industry for testing the strength of wires and cables used in vehicles. In addition, it can be used in the construction industry for testing the strength of wires and cables used in building structures. The INFINITY IC2095 is a versatile product that can be used in many different industries and applications.
Support and Services:
The Wire Pull Tester product is designed to provide accurate and reliable measurements of wire pull strength. Our technical support team is available to assist with any questions or issues regarding the operation, calibration, and maintenance of the product. We also offer a range of services, including repair and calibration, to ensure that your Wire Pull Tester is always operating at peak performance.
Packing and Shipping:
Product Packaging:
- 1 Wire Pull Tester
- Instruction Manual
- Calibration Certificate
Shipping:
- Shipped via UPS Ground
- Estimated delivery time: 3-5 business days
- Shipping cost: $15.99
FAQ:
What is the brand name of this wire pull tester?
The brand name of this wire pull tester is INFINITY.
2.
What is the model number of this wire pull tester?
The model number of this wire pull tester is IC2095.
3.
Where is this wire pull tester made?
This wire pull tester is made in China.
4.
What certifications does this wire pull tester have?
This wire pull tester has CE and ISO certifications.
5.
What is the minimum order quantity for this wire pull tester?
The minimum order quantity for this wire pull tester is 1.
6.
What is the price of this wire pull tester?
The price of this wire pull tester is negotiable.
7.
What is the packaging detail for this wire pull tester?
The packaging detail for this wire pull tester is clear sheet+sponge+wood carton.
8.
What is the delivery time for this wire pull tester?
The delivery time for this wire pull tester is 20-30 days after order confirmed.
9.
What are the payment terms for this wire pull tester?
The payment terms for this wire pull tester are TT PAYPAL Moneygram and so on.
10.
What is the supply ability for this wire pull tester?
The supply ability for this wire pull tester is 200 sets / month.
