Product Description:
The Wire Pull Tester is designed to perform a swing-folding resistance test on wires. The test method involves holding one end of the wire short, fixing it on the rotating plate, and vertically dropping the wire. The other end of the wire is bound with a weight, and the rotating plate rotates left and right, causing repeated bending of the wire. After multiple tests, the Wire Pull Test Machine evaluates whether the wire conduction is good.
The Five Stations Wire Pull Testing Machine is suitable for use in various industries that require wire testing. It is a versatile machine that can test different types of wires with different weights. The machine is designed to be durable and long-lasting, ensuring reliable and accurate results every time.
Features:

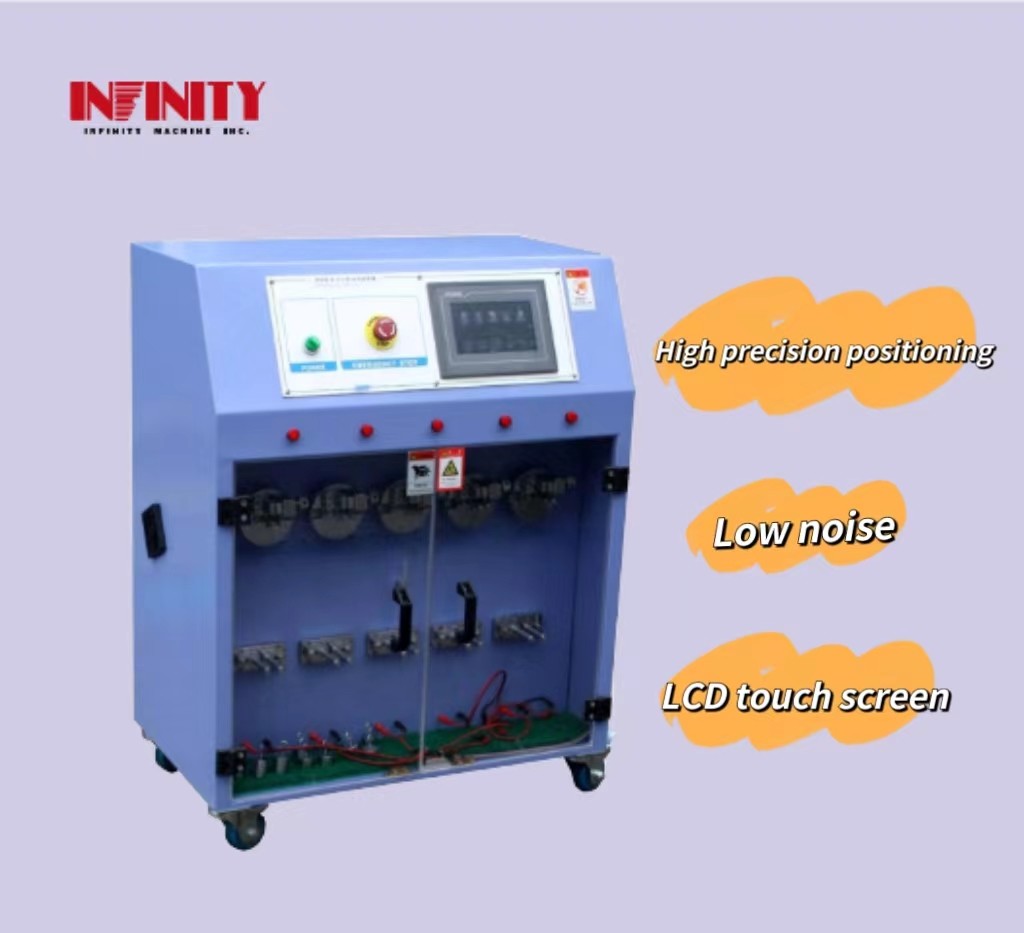

- Product Name: Five Stations Wire Pull Testing Machine
- Standard: Bend Test GBT 5023.2
- Product Model: IC2095
- Product Name: Five Stations Wire Pull Testing Machine
- Features:
- Using Japan Panasonic AC Servo Motor Drive
- High Precision Positioning Is Accurate
- Low Noise, Can Be Used For A Long Time
- Test Angle: 0~1800,Error: ± 10
- Special Power Supply Rectifier Circuit Is Used To Improve The Long-time Use Ability And Anti-interference Of The Motor And Execution Components
- The Korean AUTONIS High-precision Photoelectric Switch Is Used For Origin Induction, With High Pulse Frequency And Durable Use
- Using MCGS 7" TFT LCD Touch Screen Controller As Program Input, PLC Control, Chinese Interface, Easy To Control
- The Test Conditions Are Set By The Touch Screen Or LCD Screen (Angle Setting, Speed, Test Times, Measured Times, Rotation Stay Time, And Residence Time After Multiple Tests)
- Five Wires Can Be Tested Simultaneously
- Each Group Is Equipped With A Signal (conduction Test) Test Line And Indicator Light
- Once The Wire Is Broken (the Loop Signal Is Not Formed), The Current Station Indicator Is Off And The Counting Is Stopped
- Test number range: 1 ~ 9,99,999 Times
Keywords: Wire Pull Test Machine, Cable Pull Strength Tester, 5-Station Wire Pull Testing Equipment
Technical Parameters:
| Product Name: | 5-Station Wire Pull Testing Equipment |
| Application: | The Equipment Is Suitable For Multi-core Cable, Communication Cable, Headphone Cable, Flat Cable, Signal Cable, Charging Cable And Other Wires For Swing Folding Resistance Test. The Test Method Is: One End Of The Wire Is Short Held, Fixed On The Rotating Plate, The Wire Is Vertically Downward, The Other End Binds The Weight, The Rotating Plate Rotates Left And Right, Causing Repeated Bending Of The Wire, After Many Tests, To Evaluate Whether The Wire Conduction Is Good. |
| Host Weight: | About 150kg |
| Source: | AC220V 50Hz 10A |
| Drive: | Panasonic Servo Motor In Japan |
| Test Speed: | 6~420 ± 25 Rad/s (settable) |
| Reaction Member: | R1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm (to Be Specified Before Ordering) |
| Batch Stay Time: | 1~10 Minutes |
| Standard: | Bend Test GBT 5023.2 |
| Control System: | Touch Screen +PLC |
| Motor Acceleration and Deceleration Time: | <45ms |
| Product Type: | Cable Pull Strength Tester |
Applications:
The spinning disc diameter of the IC2095 is 160mm, and the batch stay time ranges from 1 to 10 minutes. The motor acceleration and deceleration time is less than 45ms. The IC2095 can test up to 9,99,999 times and has a test number range of 1 to 9,99,999 times. The IC2095 is also known as the Five Stations Wire Pull Testing Machine.
The IC2095 is suitable for a wide variety of product application occasions and scenarios. It can be used to test the strength and durability of cables used in industries such as electronics, automotive, aerospace, and telecommunications. The IC2095 can also be used to test the strength and durability of cables used in consumer products, such as headphones, chargers, and data cables.
The IC2095 can be used by manufacturers to ensure that their products meet industry standards and regulations. It can also be used by quality control departments to ensure that products meet internal standards and specifications.
The IC2095 is a reliable and accurate cable pull strength tester that can be used in a variety of applications. Its 5-station design allows for multiple tests to be conducted at once, which can save time and increase efficiency. The IC2095 is a must-have for any company that produces cables or cable-related products.
Customization:
The Wire Pull Test Machine has a supply ability of 200 sets per month and comes with a range of features. It uses a Japan Panasonic AC Servo Motor Drive for high precision, accurate positioning, and low noise. The test angle is 0~1800 with an error of ±10. The special power supply rectifier circuit ensures long-term use ability and anti-interference of the motor and execution components. The Korean AUTONIS high-precision photoelectric switch is used for origin induction and has a high pulse frequency and durable use. The product uses MCGS 7" TFT LCD touch screen controller for program input and PLC control, with Chinese interface for easy control.
The Wire Pull Test Machine can be used to test five wires simultaneously. Each group is equipped with a signal (conduction test) test line and indicator light. Once the wire is broken (the loop signal is not formed), the current station indicator is off, and the counting is stopped. The test conditions are set by the touch screen or LCD screen (angle setting, speed, test times, measured times, rotation stay time, and residence time after multiple tests).
The test speed of the Wire Pull Test Machine is 6~420±25 Rad/s (settable) and the reaction member can be chosen from R1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, and 6mm (to be specified before ordering). The product has a weight of 50g, 100g, 150g, 250g, and 300g and operates on an AC220V 50Hz 10A source.
Order your customized Multi-Station Wire Pull Test Device from INFINITY today and get accurate and reliable results for your wire pull tests.
Support and Services:
The Wire Pull Tester is a product that measures the force required to pull a wire from a terminal or crimp. Our technical support team is available to assist with any questions or issues related to the product's operation or functionality. In addition, we offer various services to ensure optimal performance, including calibration and repair services. Our team of trained technicians can perform routine maintenance and repairs to keep your Wire Pull Tester functioning at its best. We also provide training and educational resources to help users get the most out of the product. Contact us for more information on our technical support and services for the Wire Pull Tester.
Packing and Shipping:
Product Packaging:
- Dimensions: 12" x 10" x 8"
- Weight: 5 lbs
- Materials: Cardboard box, foam inserts, instruction manual
Shipping:
- Shipping method: Standard ground shipping
- Shipping weight: 6 lbs
- Shipping dimensions: 14" x 12" x 10"
- Shipping cost: Calculated at checkout based on location
FAQ:
Q: What is the brand name of the wire pull tester?
A: The brand name of the wire pull tester is INFINITY.
Q: What is the model number of the wire pull tester?
A: The model number of the wire pull tester is IC2095.
Q: Where is the wire pull tester made?
A: The wire pull tester is made in China.
Q: What certifications does the wire pull tester have?
A: The wire pull tester has CE and ISO certifications.
Q: What is the minimum order quantity for the wire pull tester?
A: The minimum order quantity for the wire pull tester is 1.
Q: What is the price of the wire pull tester?
A: The price of the wire pull tester is negotiable.
Q: What are the packaging details for the wire pull tester?
A: The packaging details for the wire pull tester are clear sheet+sponge+wood carton.
Q: What is the delivery time for the wire pull tester?
A: The delivery time for the wire pull tester is 20-30 days after order confirmed.
Q: What are the payment terms for the wire pull tester?
A: The payment terms for the wire pull tester are TT, PayPal, Moneygram, and so on.
Q: What is the supply ability of the wire pull tester?
A: The supply ability of the wire pull tester is 200 sets/month.
