So As To Evaluate Whether Swing Force Tester Meets Manufacturing Requirements

Product Description:

This testing machine has a working power supply of AC220V 3A 50Hz, making it suitable for use in most industrial settings. Its dual-station design allows for simultaneous testing of two samples, increasing the efficiency of testing processes.

The maximum test trip of this machine is 150mm, providing ample space for a wide range of test samples. Additionally, the displacement decomposition degree of 0.001mm ensures highly precise and accurate test results.

Whether you need to test the strength of metals, plastics, ceramics, or other materials, the Dual-station Swing Force Testing Machine is an excellent choice for any industrial or laboratory setting. Its high precision, dual-station design, and compact size make it a versatile and efficient testing machine for a wide range of applications.

Features:

• Product Name: Universal Testing Machine
• Test speed accuracy: ±0.5%
• Machine weight: About 105 Kg
• Features:
  • Real-time display of the current force value and displacement changes
  • Can be displayed: force-displacement (kgf-mm), or force-time (kgf-time) curve diagram
  • Language has Simplified / Traditional / English three operation interface can be switched
  • The force value unit has N, Lb, Gf, Kgf can be switched, suitable for global customers
  • Open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples
  • The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information
  • The test data is stored in a local database for easy access and query
  • The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input
  • Data report, curve report can be printed, and exported as Word, Excel, PDF and other format documents
  • Meet the independent control and independent testing of 2 groups of products
  • Force value sensor capacity: 0.5KN(50Kg F )
  • Test station: 2Slot

Dual-station Swing Force Testing Machine, Dual-station Swing Force Testing Machine, Dual-station Testing Machine

Bidirectional swing force curve diagram: Force-displacement (kgf-mm):

Technical Parameters:

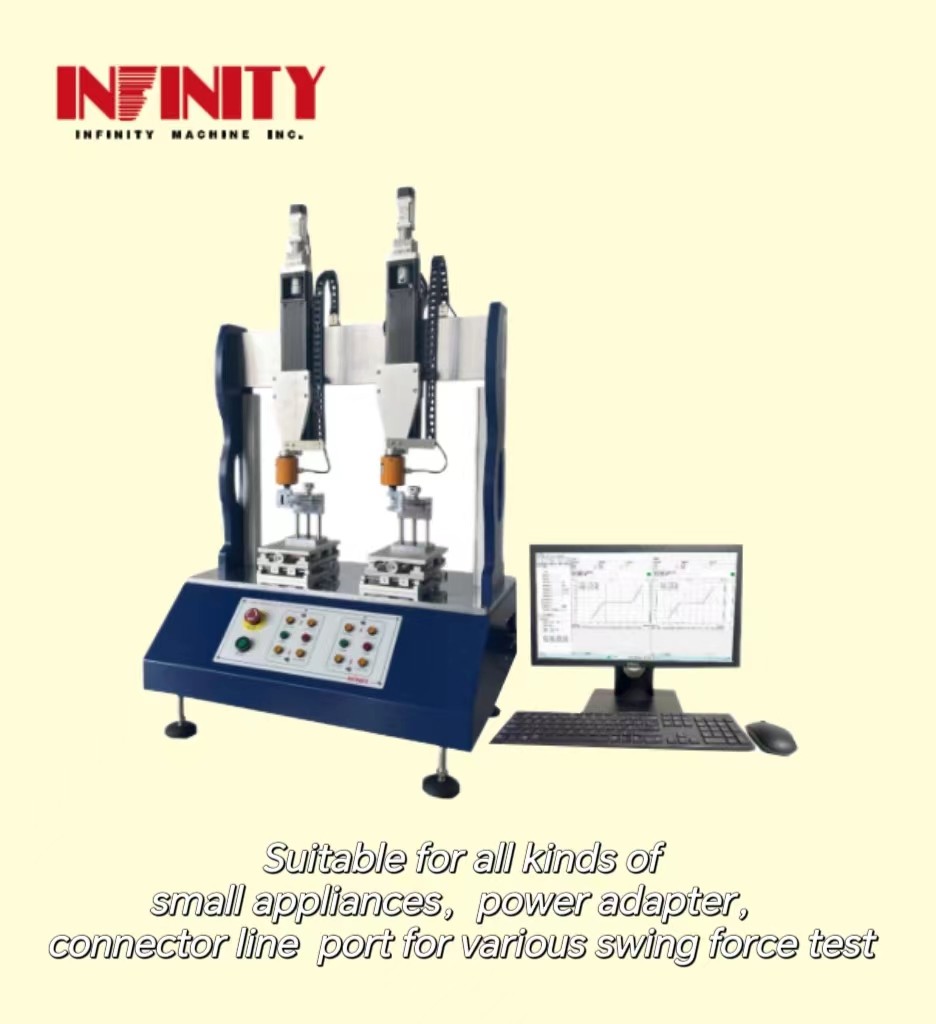

This Swing Force Tester, Dual-station Swing Force Testing Machine is equipped with a force value sensor capacity of 0.5KN(50Kg F), and has a test speed range of 0.1~1200mm/min with a test speed accuracy of ±0.5%. It has a maximum test trip of 150mm and a machine weight of about 105 Kg. The unit size (WxDxH) is 800x560x 1258mm. The equipment is suitable for all kinds of small appliances, power adapter, connector line port for various swing force test, the port after the applied force after multiple swing test results, so as to evaluate whether the product meets the manufacturing requirements. This Swing Force Tester provides real-time display of the current force value and displacement changes, and can display force-displacement (kgf-mm), or force-time (kgf-time) curve diagram. The language has simplified / traditional / English three operation interface can be switched and the force value unit has N, Lb, Gf, Kgf can be switched, suitable for global customers. It also has an open force value protection function, a protection value is set according to the conventional test force, when operation or point movement will automatically stop moving, to reduce damage to the equipment and precision samples. The test method management logic is clear, and the new method provides the correctness check of the parameters and provides the error information. The test data is stored in a local database for easy access and query. The header content of the report can be modified at any time (both Chinese and English), and the report can be automatically generated without input. Data report, curve report can be printed, and exported as Word, Excel, PDF and other format documents. It meets the independent control and independent testing of 2 groups of products.

Dimensional drawing:(mm)

Applications:

The IF6112 Universal Testing Machine has a displacement decomposition degree of 0.001mm and a weight of approximately 105 Kg. It features real-time display of the current force value and displacement changes, with the option to display force-displacement (kgf-mm) or force-time (kgf-time) curve diagrams. The machine has a language interface that can be switched between Simplified, Traditional, and English, and the force value unit can be switched between N, Lb, Gf, and Kgf to suit a global customer base.

The IF6112 Universal Testing Machine also features an open force value protection function, which automatically stops the machine when it reaches a predetermined protection value to reduce damage to the equipment and precision samples. The test method management logic is clear and the machine provides correctness checks of parameters and error information. Test data is stored in a local database for easy access and query, and headers for reports can be modified in both Chinese and English. Reports can be automatically generated without input, and data can be exported in Word, Excel, PDF and other formats.

The IF6112 Universal Testing Machine is a dual-station testing machine, making it suitable for independent control and independent testing of two groups of products. Its test speed accuracy is ±0.5%, and its unit size is 800x560x 1258mm, making it a compact and efficient choice for a range of testing scenarios. Specifically, it is ideal for materials testing, including tension, compression, bending, shear, peeling, tearing, cyclic, and hardness tests, and is also suited for product testing in industries such as electronics, rubber, plastics, textiles, and other fields.

Customization:

Brand Name: Infinity Machine

Model Number: IF6112

Place of Origin: Made In China

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets / month

Unit size (WxDxH): 800x560x 1258mm

Force value sensor capacity: 0.5KN(50Kg F )

Features:

• Real-time Display Of The Current Force Value And Displacement Changes
• Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
• Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
• The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
• Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples
• The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
• The Test Data Is Stored In A Local Database For Easy Access And Query
• The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input
• Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
• Meet The Independent Control And Independent Testing Of 2 Groups Of Products

Force value accuracy: ±0.3%

Machine weight: About 105 Kg

Swing Force Tester

Support and Services:

The Universal Testing Machine is a high-precision testing equipment designed to perform mechanical tests on a variety of materials. Our product technical support and services include:

- Installation and commissioning of the machine

- Training on how to operate and maintain the machine

- Calibration services to ensure accurate testing results

- Repair and maintenance services to keep the machine in good condition

- Spare parts and accessories to enhance the capabilities of the machine

Our team of experts is committed to providing you with reliable technical support and services to ensure the optimal performance of your Universal Testing Machine.

Packing and Shipping:

Product Packaging:

The Universal Testing Machine is carefully packaged in a sturdy cardboard box to ensure safe transportation. The machine is secured with foam inserts and additional padding to protect it from any damage during shipping.

Shipping:

We offer worldwide shipping for the Universal Testing Machine product. Our shipping partners ensure prompt and safe delivery of the product to our customers' doorstep. Shipping costs may vary depending on the destination and mode of transportation chosen by the customer.

FAQ:

Q1: What is the brand name of the Universal Testing Machine?

A1: The brand name is Infinity Machine.

Q2: What is the model number of the Universal Testing Machine?

A2: The model number is IF6112.

Q3: Where is the Universal Testing Machine made?

A3: It is made in China.

Q4: What certifications does the Universal Testing Machine have?

A4: It has CE and ISO certifications.

Q5: What is the minimum order quantity for the Universal Testing Machine?

A5: The minimum order quantity is 1.

Q6: What is the price of the Universal Testing Machine?

A6: The price is negotiable.

Q7: What are the packaging details for the Universal Testing Machine?

A7: The packaging details are clear sheet+sponge+wood carton.

Q8: What is the delivery time for the Universal Testing Machine?

A8: The delivery time is 20-30 days after order confirmed.

Q9: What are the payment terms for the Universal Testing Machine?

A9: The payment terms are TT, PayPal, Moneygram, and so on.

Q10: What is the supply ability of the Universal Testing Machine?

A10: The supply ability is 200 sets per month.
