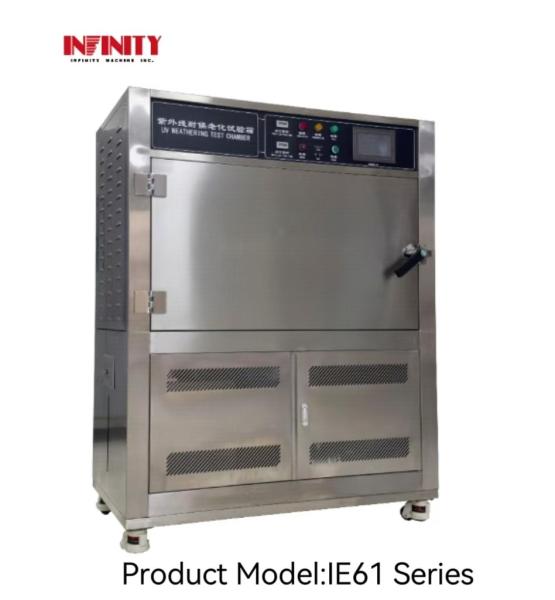

UVA340 UVB313 Stability Climatic Test Stainless Steel UV Accelerated Aging Test Chamber

Name: UVA340 UVB313 Stability Climatic Test Stainless Steel UV Accelerated Aging Test Chamber
Brand: Infinity Machine
Price: 1 USD

UVA340 UVB313 Stability Climatic Test Stainless Steel UV Accelerated Aging Test Chamber Manufactures

Brand Name : Infinity Machine

Model Number : IE61 series

Certification : CE ISO

Place of Origin : Made In China

MOQ : 1

Price : Negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS PER MONTH

Delivery Time : 20-30 days after order confirmed

Packaging Details : Clear sheet+sponge+wood carton

Product name : UV climatic chamber

Application : It is widely used to evaluate the weather resistance of the material.

Applicable standard : ISO 4892-3、ISO 11507

Feature : Provides the best sunlight UV simulation, low maintenance and easy to use.

Model : IE61 series

Temperature range : RT+20℃~70℃

Humidity range : ≥90%RH

Box structure : Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes

Power : Electronic

Warranty : 1 Year

Contact Now

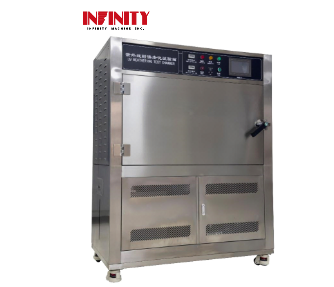

UVA340 UVB313 Stability Climatic Test Stainless Steel UV Accelerated Aging Test Chamber
Model: IE61 series

Equipment Overview:
This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
UVA340 UVB313 Stability Climatic Test Stainless Steel UV Accelerated Aging Test Chamber
Applicable standards:

ASTM D4329,D499,D4587,D5208,G154,G53；
ISO 4892-3,ISO 11507；
EN 534；EN 1062-4；BS 2782；JIS D0205；SAE J2020

Features:

Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.
Provides the best sunlight UV simulation, low maintenance and easy to use.
Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.

Specification parameter:

Model number	IE61304	IE61313
Temperature range	RT+20℃~70℃
Humidity range	≥90%RH
Temperature fluctuation	±0.5℃
Temperature uniformity	≦1.0℃
Center distance inside the lamp	70mm
The distance between Sample and the center of the lamp	50±3mm
Modulator tube /lamp	UVA-340 L=1200/40W,8 pcs	UVB-313 L=1200/40W,8 pcs
Irradiance	Adjustable within 1.2W/㎡	Adjustable within 1.0W/㎡
Ultraviolet wavelength	315-400nm	280-315nm
Effective irradiation region	900×210mm
Irradiated blackboard temperature	50℃~70℃
Inner box size:WxHxD(mm)	1180650600
Outer box size:WxDxH(mm)	13006201630
Box structure	Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes
Sample holder	Aluminum frame type base frame vision plate, 24 pcs
Standard sample size	75×290mm(Special specifications need to be explained)
Safety protection device	Leakage circuit breaker control circuit, overload, short circuit alarm, over-temperature alarm, water shortage protection
Power supply	AC220V;50Hz;5KW

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.

Packing and Shipping:

Product Packaging:

The Environmental Test Cahmber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.

Shipping:

The shipping of the Environmental Test Cahmber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
